Product
Product Fill-Station

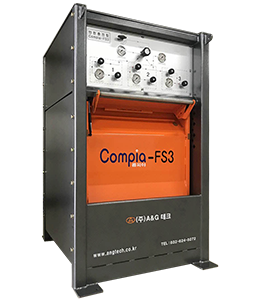

| Model | Compia-FS3 | |
|---|---|---|
| Capacity | 3 cylinders | |
| Cylinder Type | Type 1 and Type 3 | |
| Maximum capacity |
TYPE1 | 11.1ℓ |
| TYPE3 | 6.8ℓ | |
| Maximum pressure |
TYPE1 | 20MPa(24MPa) |
| TYPE3 | 30MPa(36MPa) | |
| Cerification Number | KGS-17-001 | |
| Installment | Portable | |
| Size (mm) | L1030 x W1070 x H1700 | |
조달청 3자단가 계약

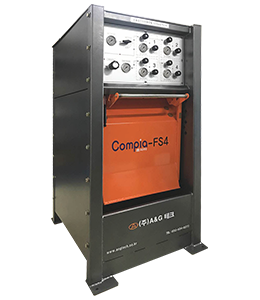

| Model | Compia-FS4 | |
|---|---|---|
| Capacity | 4 cylinders | |
| Cylinder Type | Type 1 / Type2 / Type 3 | |
| Maximum capacity |
TYPE1 | 11.1ℓ |
| TYPE2 | 11.1ℓ | |
| TYPE3 | 9ℓ | |
| Maximum pressure |
TYPE1 | 20MPa(24MPa) |
| TYPE2 | 30MPa(36MPa) | |
| TYPE3 | 31MPa(37.2MPa) | |
| Cerification Number | KGS-17-005, 19-025 | |
| Installment | Portable | |
| Size (mm) | L850 x W1070 x H1700 | |
조달청 3자단가 계약
| Model | Compia-3407FS4 | |
|---|---|---|
| Compressor | Compia-3407 | |
| Capacity | 4 cylinders | |
| Cylinder Type | Type 1 / Type2 / Type 3 | |
| Maximum capacity |
TYPE1 | 11.1ℓ |
| TYPE2 | 11.1ℓ | |
| TYPE3 | 9ℓ | |
| Maximum pressure |
TYPE1 | 20MPa(24MPa) |
| TYPE3 | 30MPa(36MPa) | |
| TYPE3 | 31MPa(37.2MPa) | |
| Cerification Number | KGS-17-005, 19-025, KFI certification | |
| Installment | Portable | |
| Size (mm) | L1800 x W1100 x H1750 | |
