High Pressure

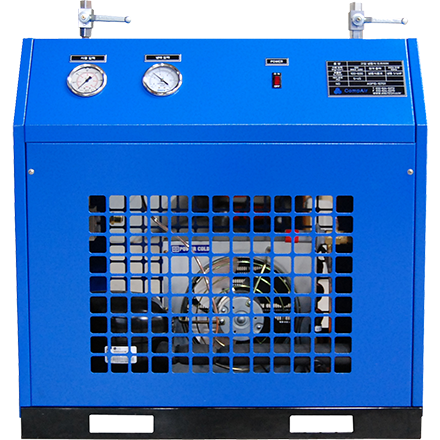

Refrigerated Dryer
- Model : AGD-900RF
- Air-cooled Type
- PRESSURE : 35Mpa(350BAR)
- CAPACITY : 1500ℓ/min~2100ℓ/min
- Auto Drain
- Cooling Air Requirement : 500㎥/hr
- Mount Case : Free Standing
- Refrigeration Fluid : R22 of R134a
- IN-OUT Port : 1/4 ~ 3/8 inch

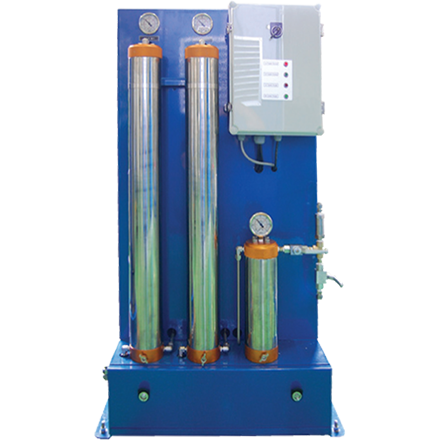

Desiccant Dryer
- Breathing Air Filtering System
- Separator & Mako 1503 / 1803 Filter
- PRESSURE : 35Mpa(350bar)

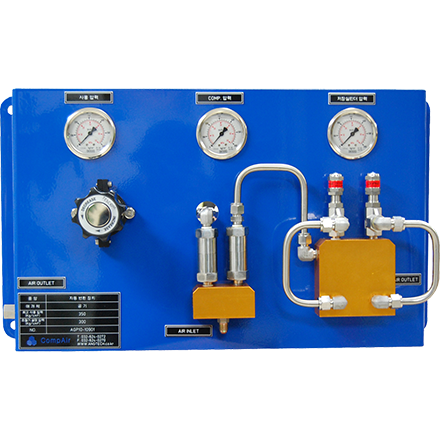

Pressure Reducing Panel
- Suction / Regulator / Discharge Gauge
- Safety Valve
- Check Valve

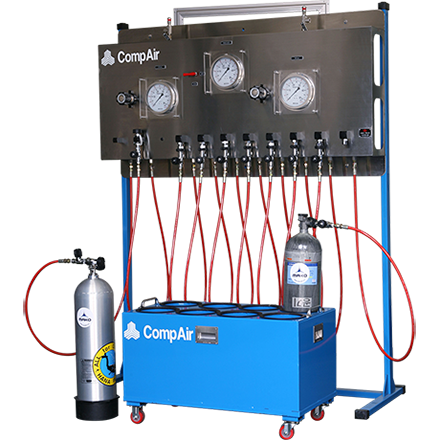

Filling Panel
- Cylinder Charging Panel
- Pressure Regulator : 0~200bar Cylinder & 0~300bar Cylinder
- Charging Pressure : 0~300㎏/㎠
- Safety Valve
- Check Valve

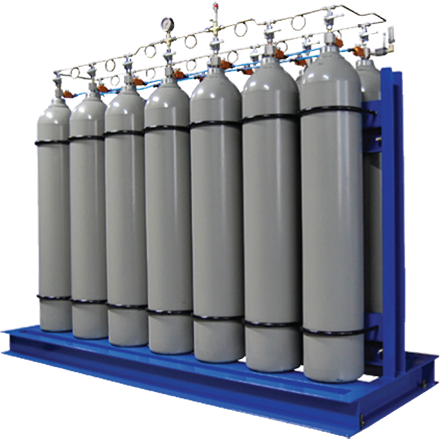

Storage Tank
- Capacity : 41ℓ(1EA)
- Max Pressure : 6000psi(414bar)
- Pressure : 4500psi(300bar)
- Temp. : -20~50℃
- Test Pressure : 495bar
- Korea Gas Safety Corporation Certification
- Pressure Gauge, Safety Valve, Drain Valve
